Cabinet and bench machines that wash ash out of diesel particulate filters, dry them and, on supported models, test them before and after, so your workshop can clean filters instead of replacing them.
Machines for the workshops that clean filters
METClean is a range of off-vehicle DPF cleaning machines for garages, mobile technicians and heavy-duty operators.
Every machine does the same core job: the filter comes off the vehicle, is secured in the machine and washed through against the exhaust flow, then dried. What changes between models is the size of filter, the level of automation, the drying and testing, and where the machine lives: a workshop floor, a bench or the back of a van.
METClean machines are designed, built and supported by MET (Mobile Eco Tuning), which runs mobileecotuning.com and the MET shop.
Soot burns. Ash doesn’t.
Most filters that come back with a warning light aren’t broken. They’re full.
Every diesel particulate filter collects two things. Soot is carbon, and a regeneration burns it off. Ash is what’s left of the additives in engine oil, and it doesn’t burn. It builds up at the back of each channel, a little more every service interval, until back-pressure climbs and the warning light returns.
That’s why there are two kinds of DPF cleaning, and why they aren’t interchangeable. An on-vehicle treatment is a two-stage chemical clean followed by a drive: it deals with soot and oil, but the ash stays where it is. Off-vehicle cleaning takes the filter out, secures it in a machine and washes it through against the exhaust flow, so the water carries the ash out.
Neither fixes the cause. If an injector, an EGR fault or a pattern of short journeys filled the filter, that needs putting right first, and a cracked or melted filter needs replacing rather than cleaning.

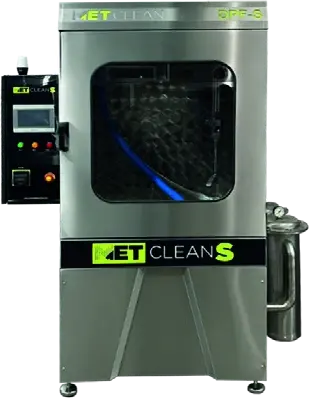

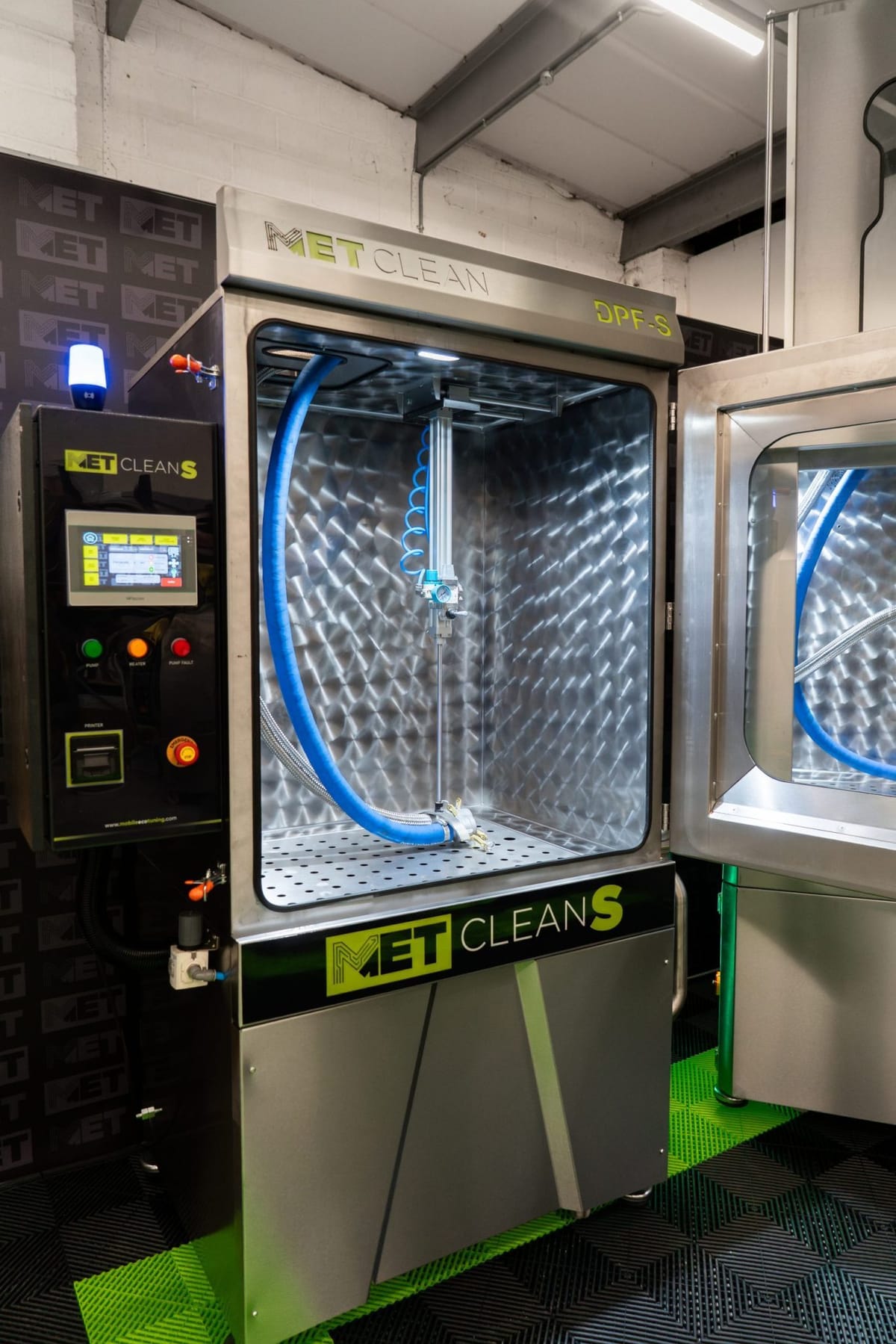

The same sequence runs on every cabinet machine. What changes from model to model is how much the machine does for you: the E and V are controlled by hand, the S runs the wash automatically and records the result, and the XL Multi+ does the same job for large-format filters.
A technician’s time goes into the steps either side of the wash: inspecting the filter, connecting it, and checking it afterwards. The machine runs the wash itself.

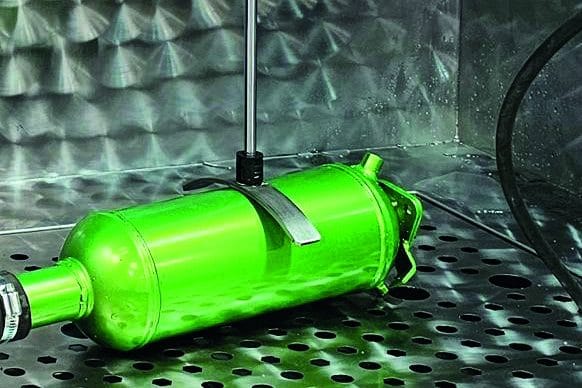

01Load and secure

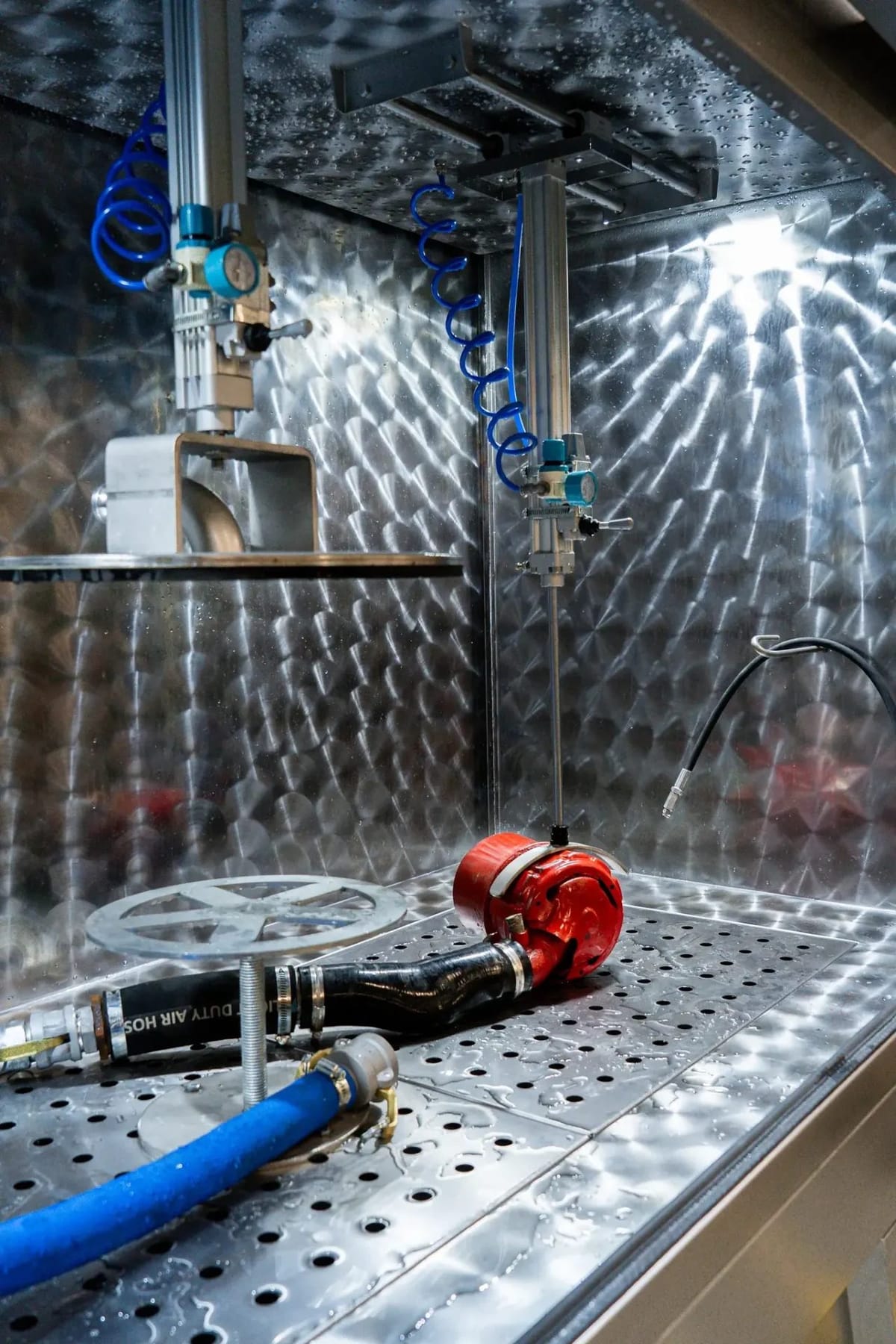

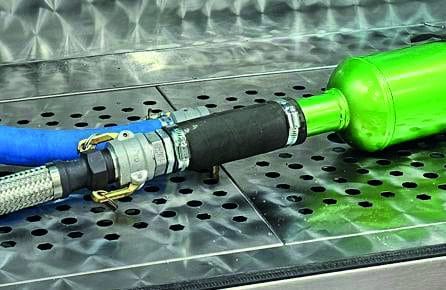

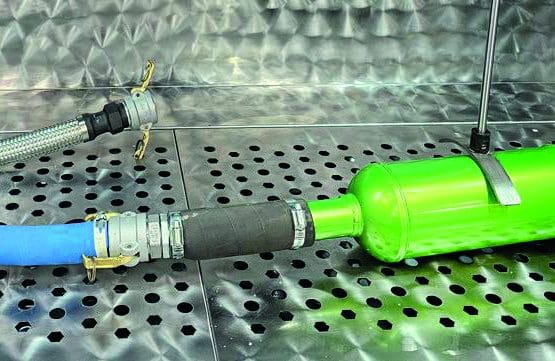

The filter is inspected for damage and its flow direction, connected to the wash hose at its outlet with the right adaptor, and secured in the chamber before the door closes.
02Pre-test
On the S, air is passed through the filter first, giving a back-pressure reading of the filter as it arrived: the before figure for the customer.
03Wash
Water from the machine’s tank runs through the filter against the exhaust direction. On the S a soft start brings the flow up gently before timed high-pressure bursts.
04Dry

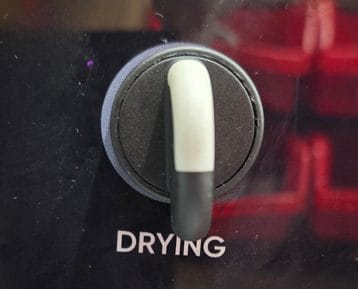

Compressed air clears standing water on every model. The S adds heated drying in the cabinet. Some filters still need finishing on the vehicle.
05Test and record

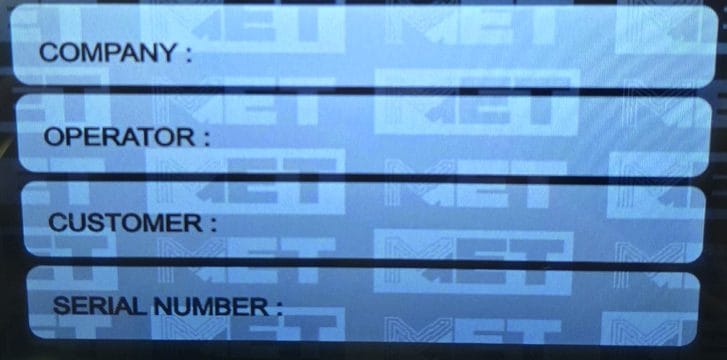

On the S, a final reading gives the after figure, and a printout records the job for the customer with your company and the filter’s serial number.
Photographs from the METClean S and V operating instructions. Cycle times and recommended settings publish once measured profiles are approved.
What’s doing the work

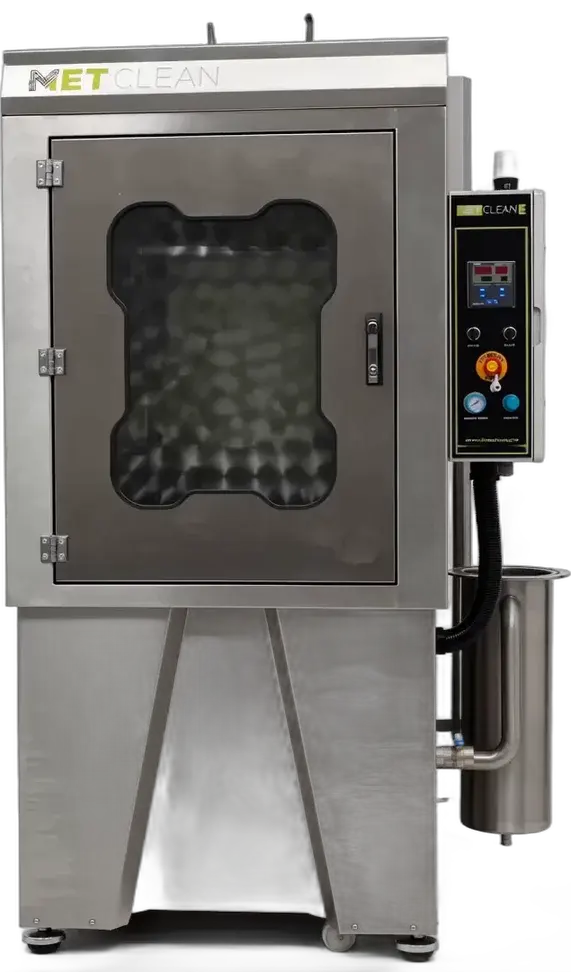

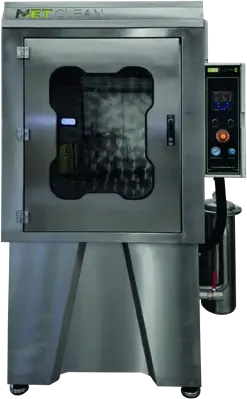

A METClean E from the front. The layout varies by model.
1Viewing window
Watch the wash with the door sealed and the spray contained.
2Stainless body
Built for a wet working environment. Grade confirmed per model.
3Controls
Programme, temperature display and emergency stop at standing height.
4Filter housing
Returning water is filtered before it goes back to the tank.
Closed-loop water, and where the waste goes
Water is held in the machine tank and pumped through the filter during the cycle. It returns to the machine rather than to a drain, passes through the filtration and settlement system that captures soot, ash and other contamination, and is circulated again. One tank fill supports many cleans.
When the water reaches the end of its useful service, the machine is isolated and emptied following the maintenance instructions. Used water, sediment and spent filters are kept and disposed of through the operator’s approved waste route. The tank and reusable filters are cleaned before refilling.
Normal expected range, not a guarantee. Heavily contaminated filters load the water and filters faster.
Find the machine for your work
Choose by the filters you see most, how many you clean and where the machine will live. Prices come from the MET shop with their VAT basis shown.
Garages and diagnostic workshops

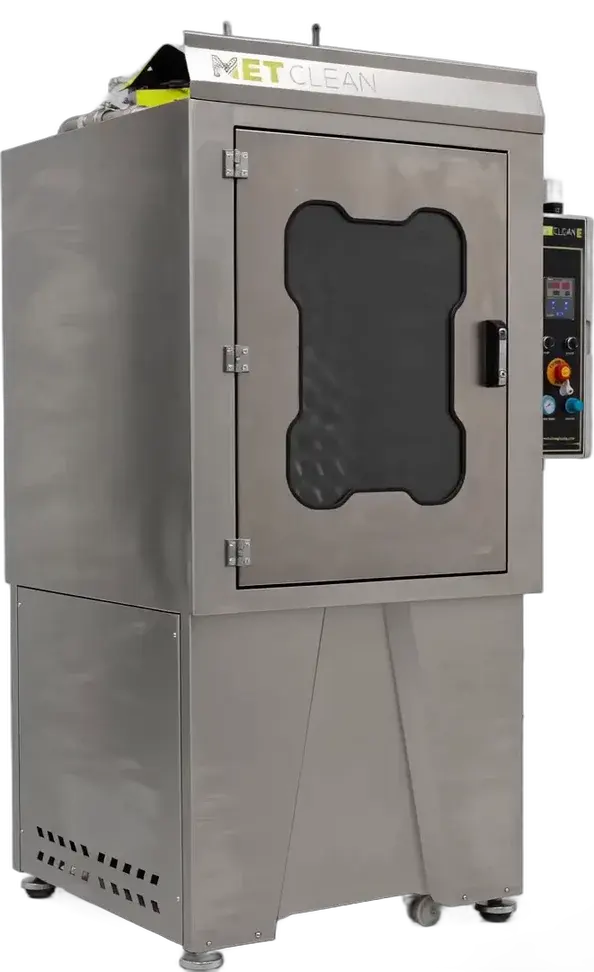

Bring car and light commercial DPF cleaning in-house instead of sending filters away or fitting new ones. Two cabinets: the E for a simpler, lower-cost start, and the S when you want automation and a record of every job.

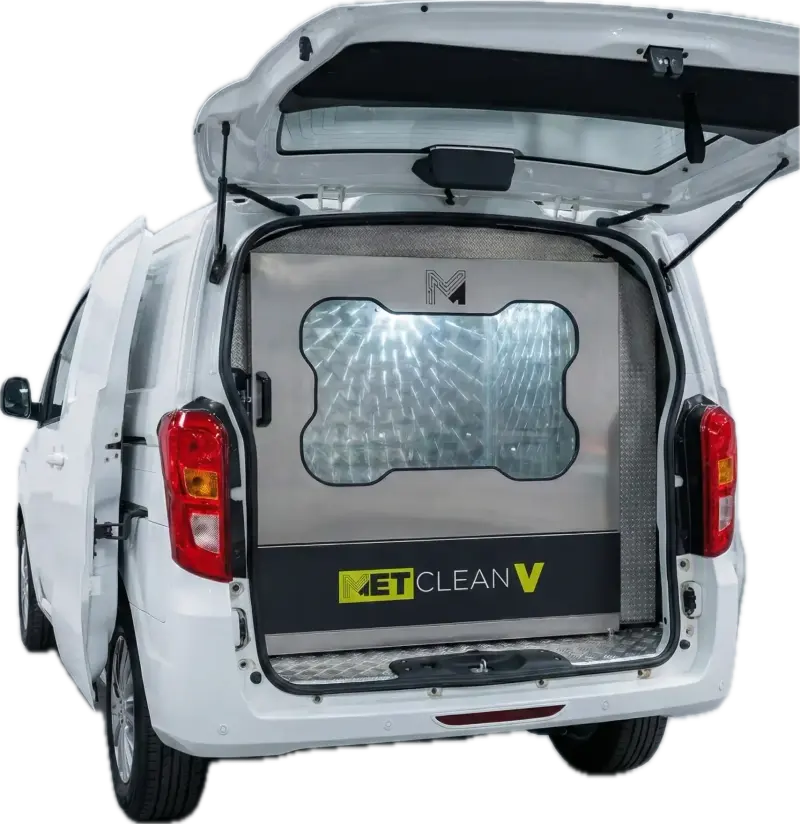

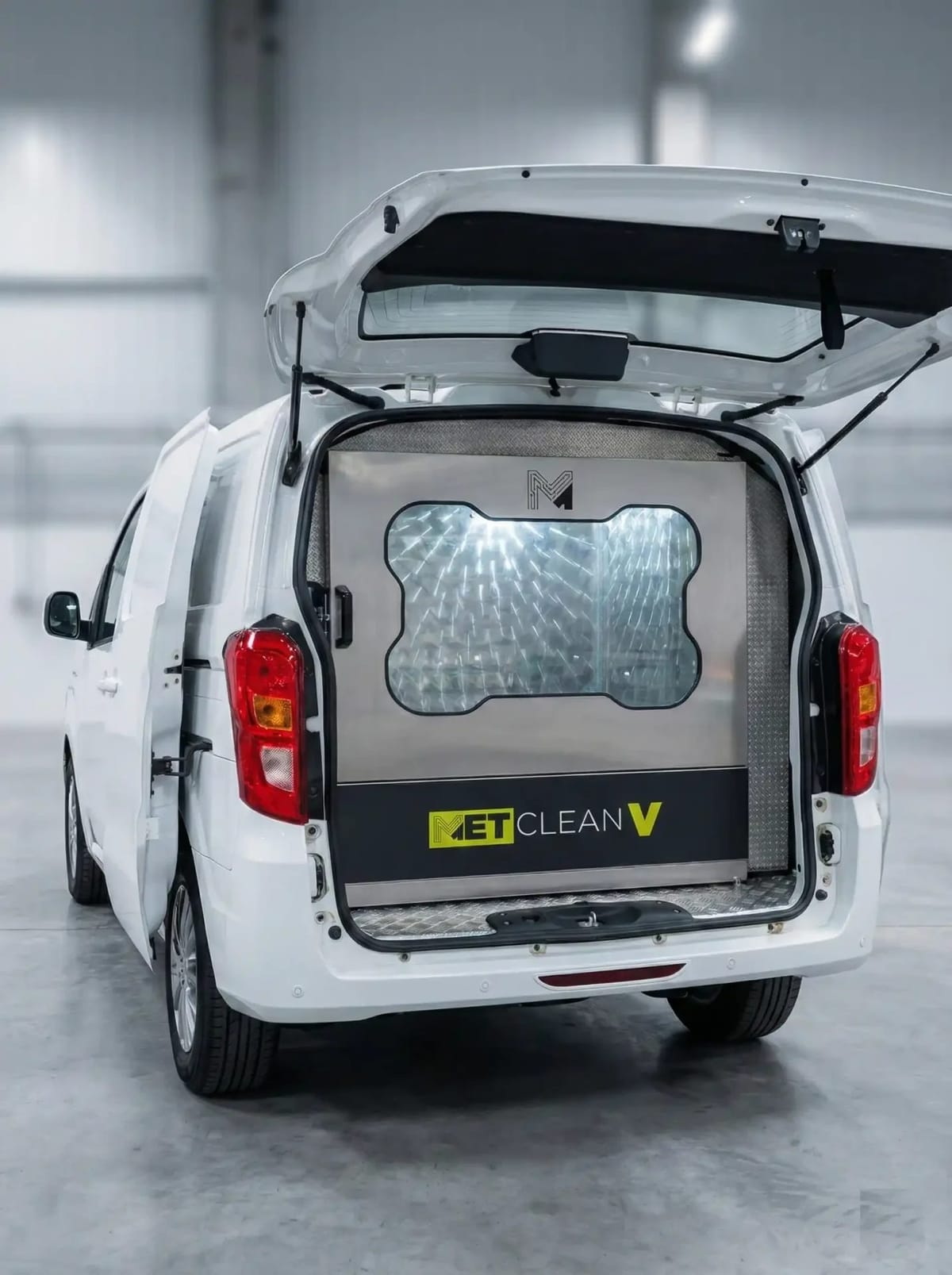

For established mobile businesses that want an off-vehicle clean as part of a collection, clean and return service. The V is a compact cabinet designed around a van and a lower electrical demand.

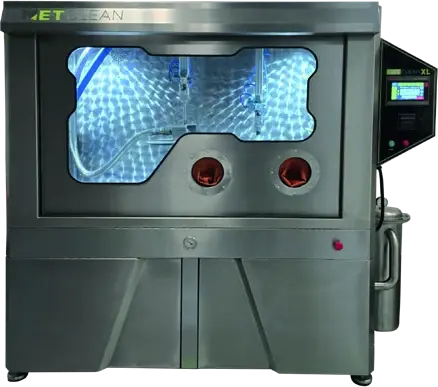

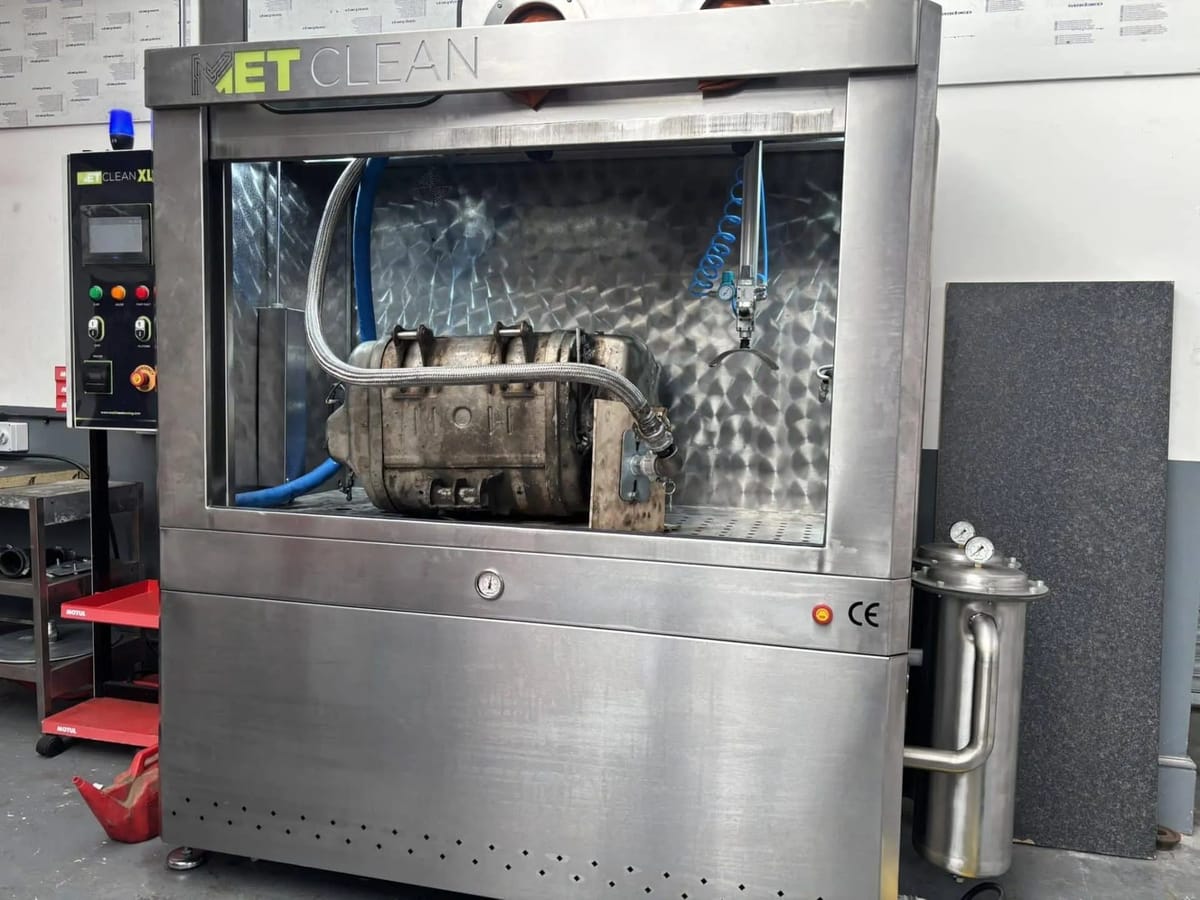

Large-format filters from trucks, buses, plant and agricultural machinery need a longer working space than car-sized cabinets. The XL platform is built for heavy-duty and multi-service workshops.
A METClean cabinet is a workshop installation, so the work starts before delivery. We agree with you where the machine will stand, the electrical supply and protective device it needs, the compressed air, water for filling the tank and how it will be emptied. Requirements differ by model and are confirmed for your site in the quote.
With the S and the XL Multi+, delivery, fitting and on-site training are included: we set up the machine and train your team on loading, programmes, drying, testing and daily maintenance. The E is designed for buyers who install it themselves, with instructional videos and remote onboarding from MET, and fitting and on-site training available at extra cost.
Warranty cover differs by model, from parts only to an engineer visiting your site, so each machine page sets out its own terms. Service and extended warranty plans are available, and spare filter elements, adaptors and consumables come from the MET shop.
Space, power, compressed air, water and drainage agreed for your site
Installation
Fitted by MET, or by you with remote onboarding, by model
Training
On site or remote, by model, including daily maintenance
Afterwards
Manuals, parts, consumables and support from MET
Will it pay for itself?
That depends on how many jobs you do, what you charge and how you pay for the machine. The calculator starts from example figures you replace with your own, and puts every assumption beside the answer.
Book a demonstration and run a real filter through a METClean machine, or ask for a quote that includes your site checks. Existing owners can reach support through the same team.
